Solar Ground Mount
PHC-Pile
Fixed-tilt ground structures on PHC piles, ramming piles, concrete and ground screws.

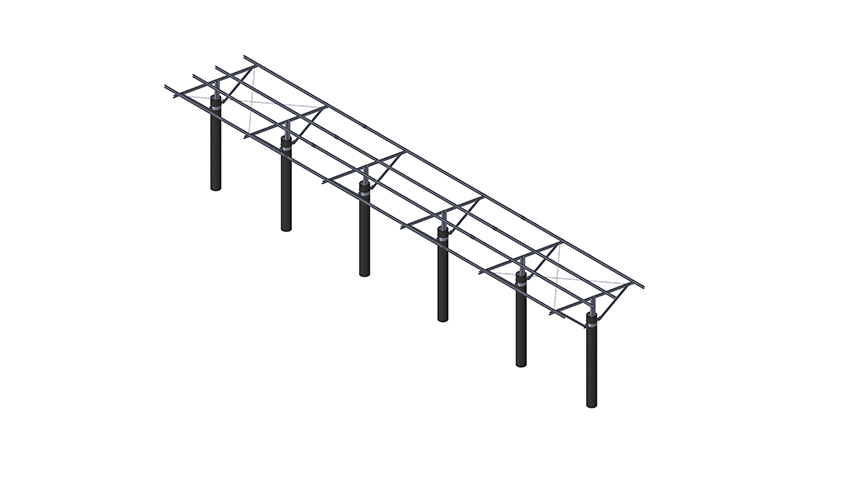

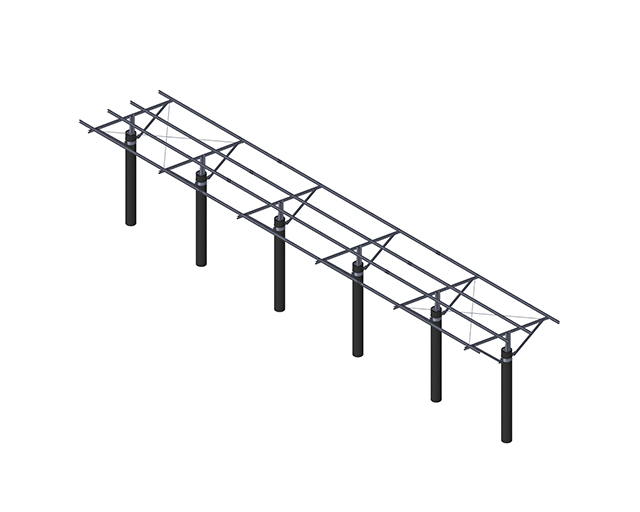

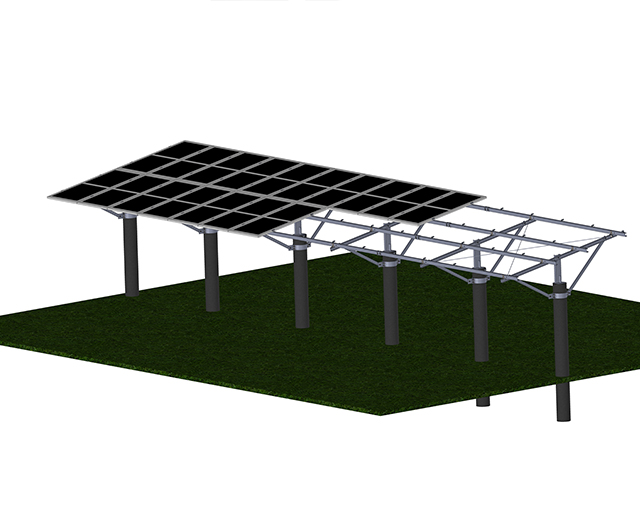

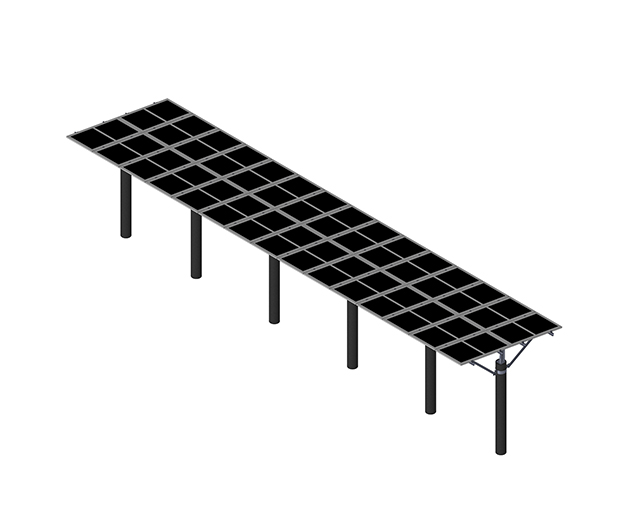

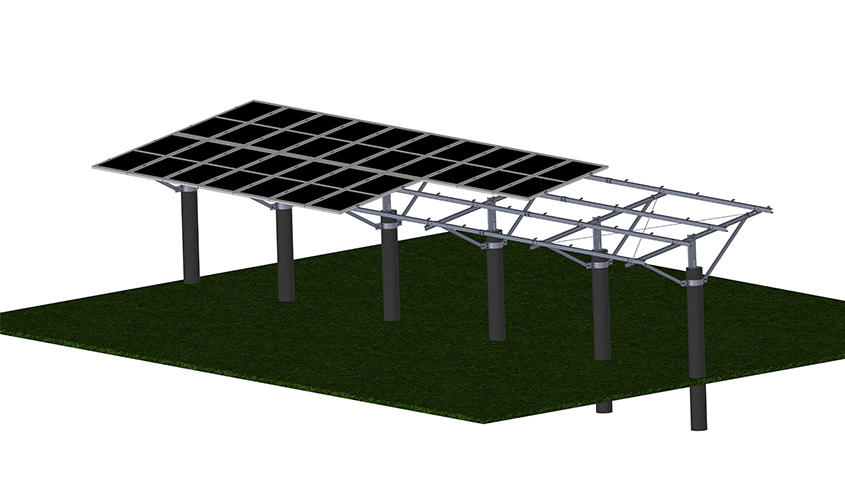

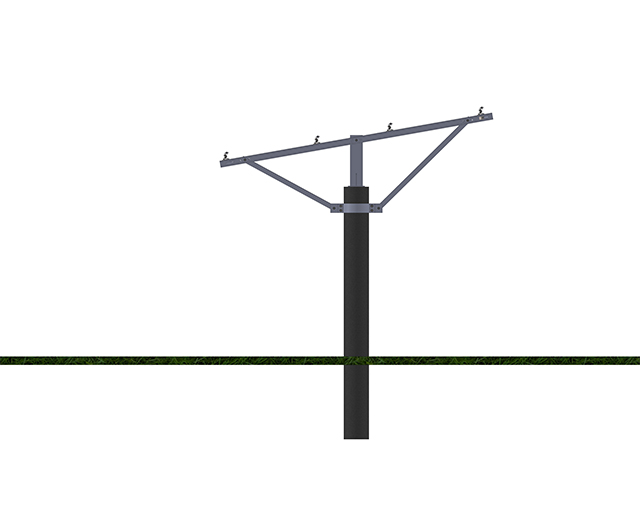

CG101 CM Solar PHC pile ground mounting solution
The PHC pile solution is popularly used in China Mainland, Taiwan, Vietnam, and south Asia.This solution can be used for the following sites.
① Soft ground with cohesive soil, sandy soil
② The site with heavy humidity and corrosion
③ The site with huge wind load
④ Most projects with this solution are close to sea share or in some lake.
Advantage:
① The system with PHC pile is stronger and stable than the screw pile or punch pile.
② The cost of structure can be reduced since the basement is stronger enough.










| Installation site | open area, lake and wetland |
|---|---|
| Installation angle | from 5°to 40° |
| Module | poly/mono/thin film |
| Material | HDG Steel/POSMAC Q235B |
| Wind load | up to 57m/s |
| Snow load | 0.5KN/M² |
| Foundation | PHC Pile |
| Anti-corrosive | HDG/VCI/SEBF |



If you are interested in our products, please feel free to send an e-mail to info@cmsolarcn.com
Or call us: +86 512 5893 9921 · WhatsApp +86 159 0616 4069
Inquire nowSolar Ground Mount
