Solar Ground Mount

Aluminum Structure

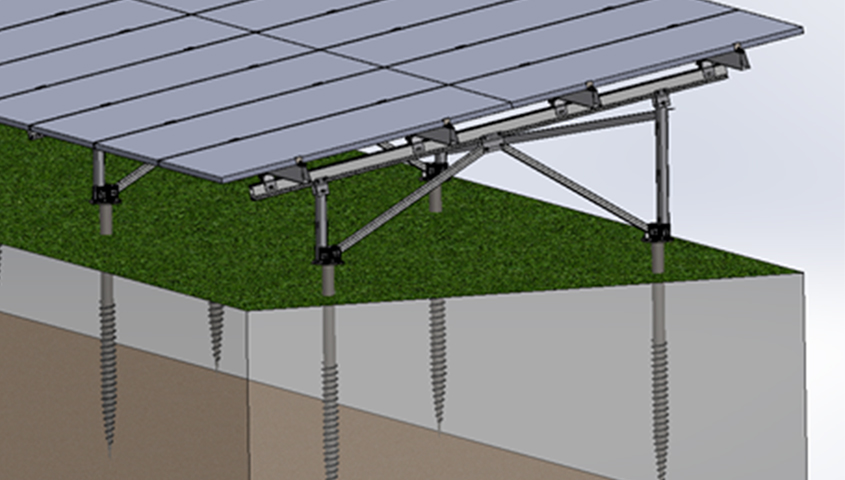

Fixed-tilt ground structures on PHC piles, ramming piles, concrete and ground screws.

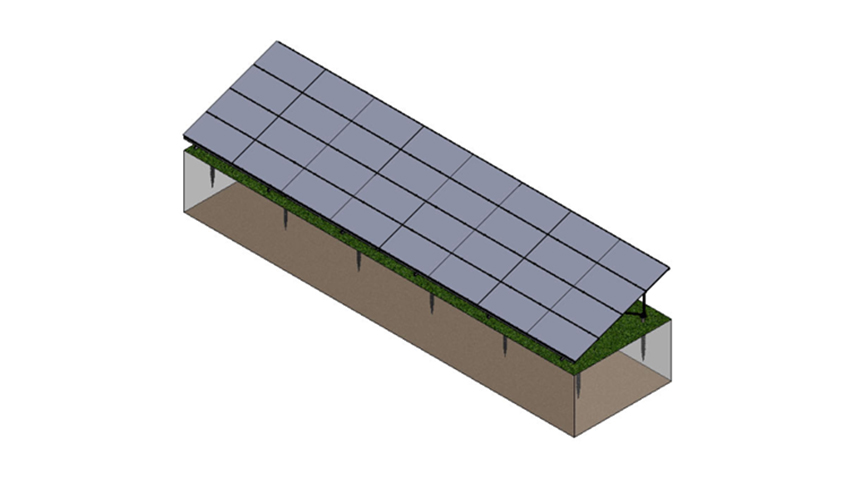

Solar Ground Mount

CG701 CM Solar Aluminum structure

KEY BENEFITS AND FEATURES:

Easy to install The brief structure and some pre-assembly can minimize the installation time and cost.

Superior aesthetics and light weight Since the main material of the system is silvery-white aluminum it creates a elegant appearance and has light weight.

High corrosion protection All structural components are composed of high class anodized aluminum with high corrosion resistance.

Adaptable to various modules The height of the clamp and the length of the aluminum rail can be adjusted to match different modules.

Proven reliability The system is designed to stand up to the extreme weather and other international structure load standard by the skilled engineer. The main support components also have been test to guaranty its structure and load-carrying capacity. Its service life can reach 25 years.

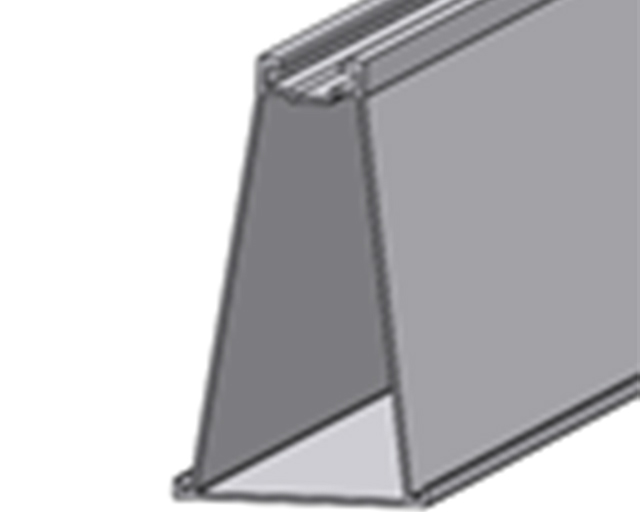

Cant beam
Cant beam

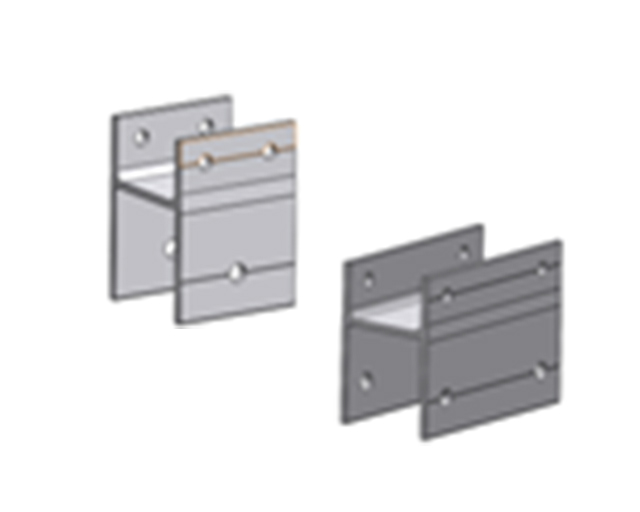

Adapter
Adapter

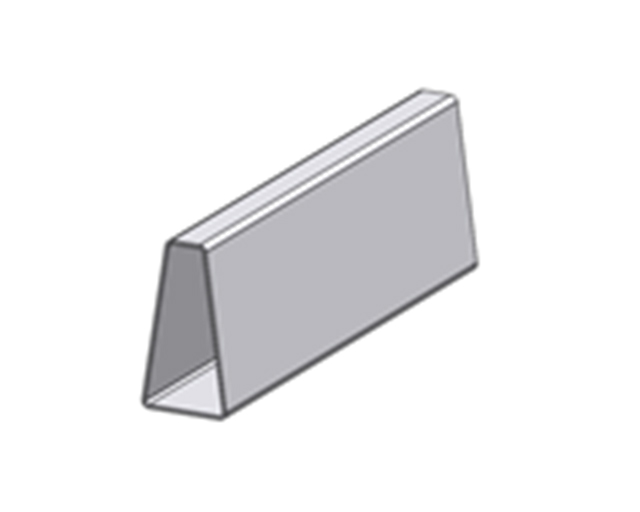

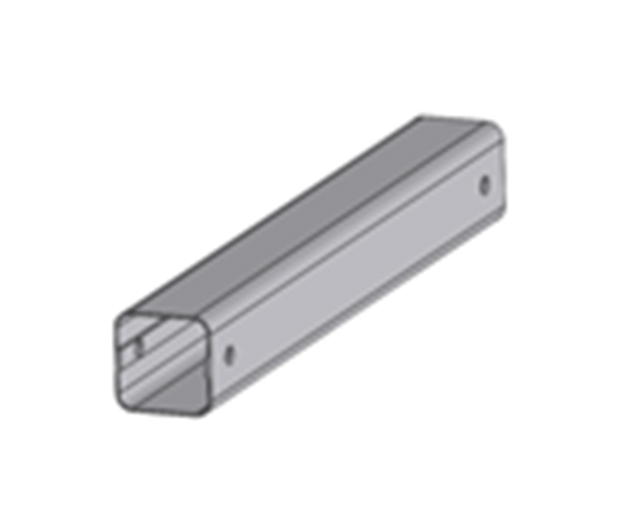

Column
Column

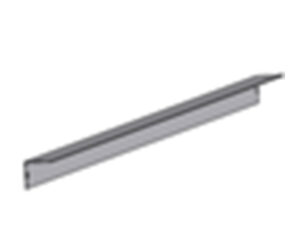

Side stay
Side stay
Tie bar
Tie bar

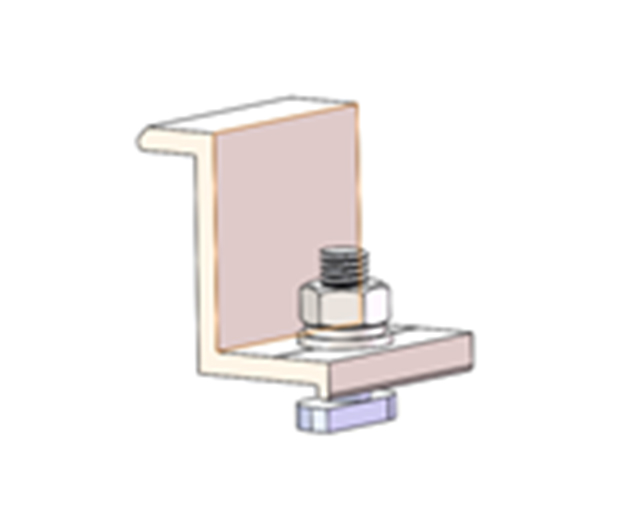

End clamp
End clamp

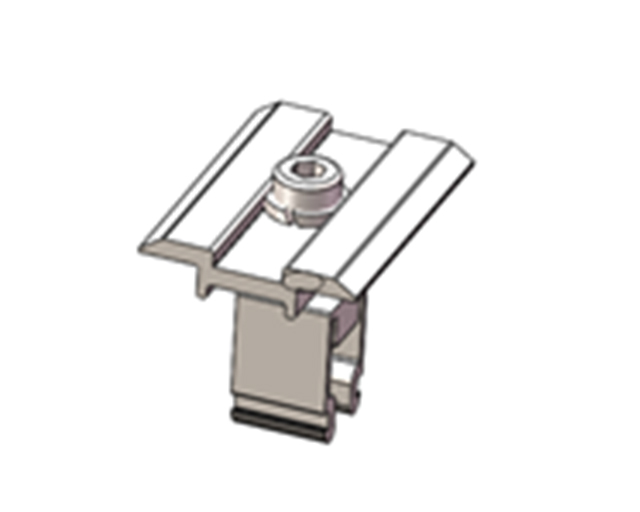

Middle clamp
Middle clamp
Rail connector
Rail connector

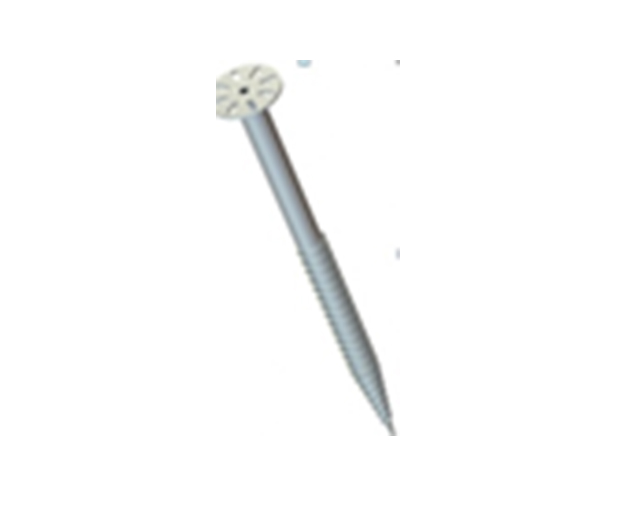

Ground screw
Ground screw

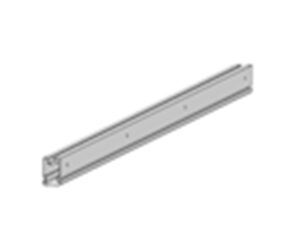

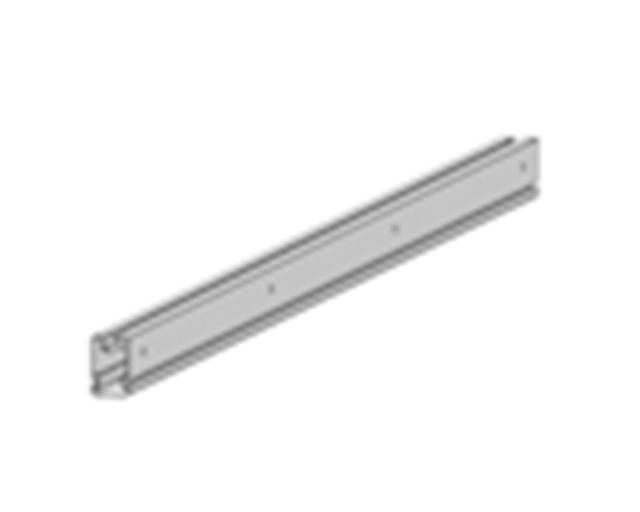

Rail
Rail

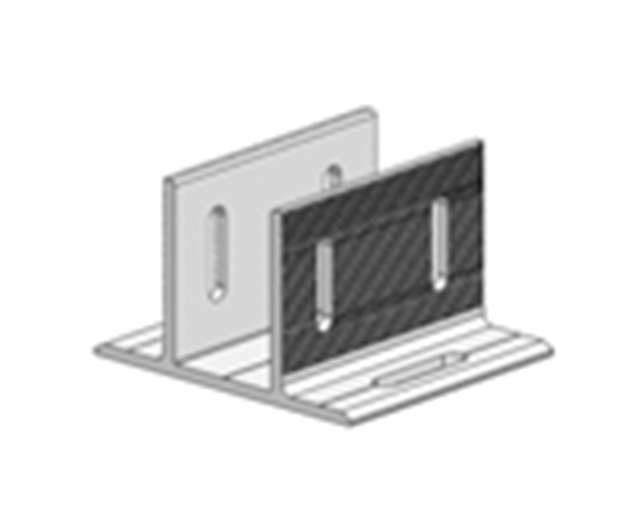

Base support
Base support

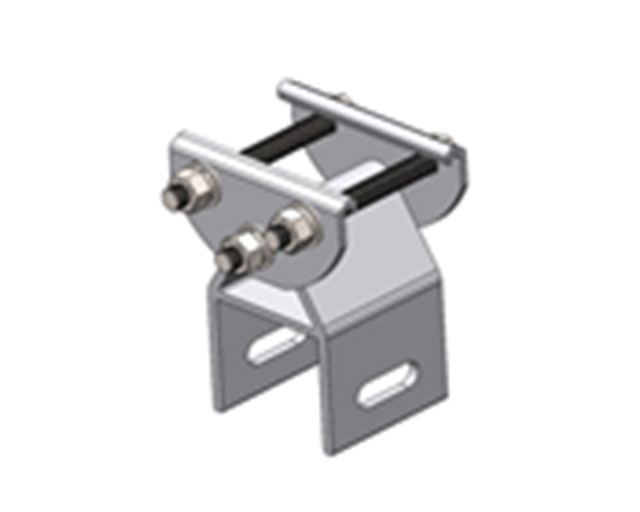

Regulating part
Regulating part
